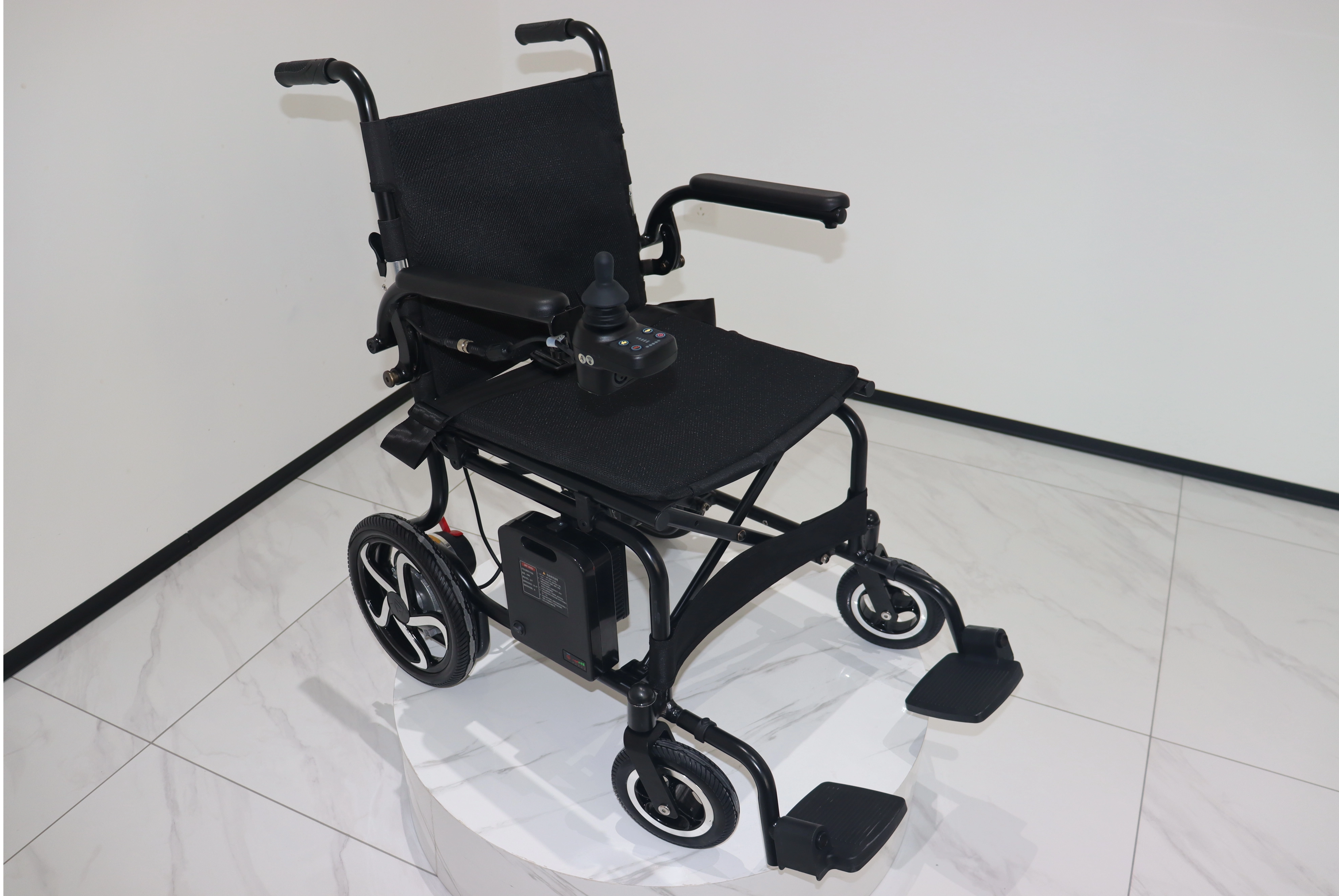

N3901 Carbon Fiber Electric Wheelchair
RIchall
N3901 Technical Data Sheet | ||
NO. | Item | Specification |
1 | Unfold Size(L×W×H) | 900*58/0*860 mm |
2 | Fold Size (L×W×H) | 580*310*650 mm |
6 | Package Size | 725*380*800mm |
7 | Net weight (without battery) | 12.3KG |
8 | Net weight (including battery) | 14KG |
Motor | ||
9 | Type | Brushless Motor |
10 | Rated Power | 150W |
11 | Rated Voltage | 24V |
12 | Brake System | Electromagnetic brake |
Battery | ||
13 | Type | Lithium-ion battery |
14 | Rated voltage | 24V |
15 | Nominal capacity | 8AH |
16 | Quantity | 1 |
Controller | ||
17 | Type | Brushless controller |
18 | Output voltage/current | 24V/30A |
Front Wheel | ||
19 | Szie | 6.5 inch |
20 | Material | PU solid tire |
21 | Quantity | 2 |
Rear Wheel | ||
22 | Szie | 11 inch |
23 | Material | PU solid tire |
24 | Quantity | 2 |
Others | ||
25 | Maximum climbing angle | 9° |
26 | Recharge mileage | 10km |
27 | Maximum speed | 4.5Km/h |
28 | Maximum obstacle height | 15cm |
29 | Charging time | 4h |
30 | Loading capacity | 120KG |
31 | Standard color | black |
N3901 Technical Data Sheet | ||
NO. | Item | Specification |
1 | Unfold Size(L×W×H) | 900*58/0*860 mm |
2 | Fold Size (L×W×H) | 580*310*650 mm |
6 | Package Size | 725*380*800mm |
7 | Net weight (without battery) | 12.3KG |
8 | Net weight (including battery) | 14KG |
Motor | ||
9 | Type | Brushless Motor |
10 | Rated Power | 150W |
11 | Rated Voltage | 24V |
12 | Brake System | Electromagnetic brake |
Battery | ||
13 | Type | Lithium-ion battery |
14 | Rated voltage | 24V |
15 | Nominal capacity | 8AH |
16 | Quantity | 1 |
Controller | ||
17 | Type | Brushless controller |
18 | Output voltage/current | 24V/30A |
Front Wheel | ||
19 | Szie | 6.5 inch |
20 | Material | PU solid tire |
21 | Quantity | 2 |
Rear Wheel | ||
22 | Szie | 11 inch |
23 | Material | PU solid tire |
24 | Quantity | 2 |
Others | ||
25 | Maximum climbing angle | 9° |
26 | Recharge mileage | 10km |
27 | Maximum speed | 4.5Km/h |
28 | Maximum obstacle height | 15cm |
29 | Charging time | 4h |
30 | Loading capacity | 120KG |
31 | Standard color | black |
Who Is RICHALL?
We are enterprise with integration of R&D , manufacturing and sales as one of the professional manufacturers.main carbon electric wheelchair ,aluminum electric wheelchair , walker, manual wheelchair Shift chair and Class I and Class II medical devices,etc.
We provide customers with a variety of high quality customized products and OEM,ODM and other projects.
We will provide customers with high quality products and the best service with professional team, advanced equipment and high effective working attitude.
Who Is RICHALL?
We are enterprise with integration of R&D , manufacturing and sales as one of the professional manufacturers.main carbon electric wheelchair ,aluminum electric wheelchair , walker, manual wheelchair Shift chair and Class I and Class II medical devices,etc.
We provide customers with a variety of high quality customized products and OEM,ODM and other projects.
We will provide customers with high quality products and the best service with professional team, advanced equipment and high effective working attitude.
Who Is RICHALL?
We are enterprise with integration of R&D , manufacturing and sales as one of the professional manufacturers.main carbon electric wheelchair ,aluminum electric wheelchair , walker, manual wheelchair Shift chair and Class I and Class II medical devices,etc.
We provide customers with a variety of high quality customized products and OEM,ODM and other projects.
We will provide customers with high quality products and the best service with professional team, advanced equipment and high effective working attitude.
Who Is RICHALL?
We are enterprise with integration of R&D , manufacturing and sales as one of the professional manufacturers.main carbon electric wheelchair ,aluminum electric wheelchair , walker, manual wheelchair Shift chair and Class I and Class II medical devices,etc.
We provide customers with a variety of high quality customized products and OEM,ODM and other projects.
We will provide customers with high quality products and the best service with professional team, advanced equipment and high effective working attitude.
Q1:Can I Take The Plane? What Documentation Is Required?
A1:Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can
consult the airline staff of your flight.
Q2:Is this hard to fold up?
A2: No, you just lift feet part to the top and it folds. if you are weak, you can choose our Automatic open and fold.
Q3:To Avoid Overcharging, Should I Need Protective Measures When Charging?
A3:No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.
Q4:Should I Need To Assemble After Unpacking?
A4:After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.
Q1:Can I Take The Plane? What Documentation Is Required?
A1:Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can
consult the airline staff of your flight.
Q2:Is this hard to fold up?
A2: No, you just lift feet part to the top and it folds. if you are weak, you can choose our Automatic open and fold.
Q3:To Avoid Overcharging, Should I Need Protective Measures When Charging?
A3:No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.
Q4:Should I Need To Assemble After Unpacking?
A4:After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.
