Name: Lightweight Recliner Aluminum Alloy Electric Wheelchair for Elder and Disabled People
Brand: RICHALL
Rating: 5.0 (55 reviews)

Lightweight and Compact Design Ultra-light aluminum alloy +carbon fiber combine material made, which can be folded into a small size easily without detaching or removing any parts.

w3501

Basic Info.

W3501 Technical Data Sheet
NO.	Item	Specification
1	Unfold Size(L×W×H)	1030620980 mm
2	Fold Size (L×W×H)	620310740 mm
6	Package Size	725380860mm
7	Net weight (without battery)	20KG
8	Net weight (including battery)	23KG
Motor
9	Type	Brushless Motor
10	Rated Power	200W
11	Rated Voltage	24V

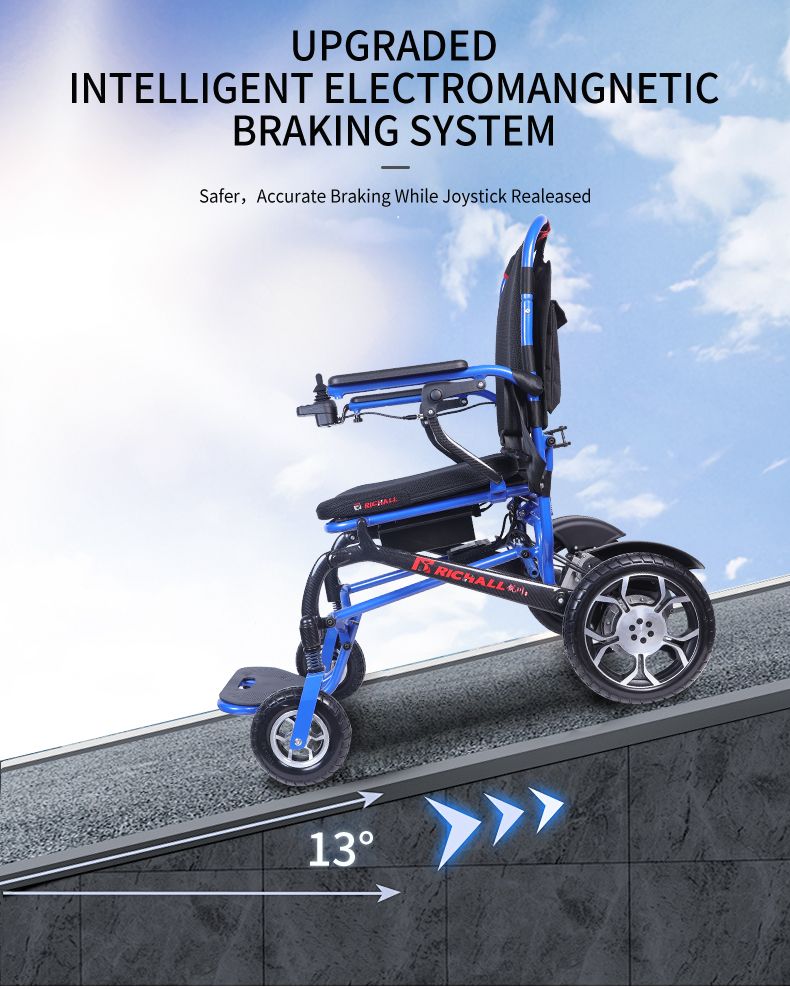

12	Brake System	Electromagnetic brake
Battery
13	Type	Lithium-ion battery
14	Rated voltage	24V
15	Nominal capacity	10AH
16	Quantity	2
Controller
17	Type	Brushless controller
18	Output voltage/current	24V/30A
Front Wheel
19	Szie	8 inch
20	Material	PU solid tire
21	Quantity	2
Rear Wheel
22	Szie	12 inch
23	Material	PU solid tire
24	Quantity	2
Others
25	Maximum climbing angle	11°
26	Recharge mileage	20km
27	Maximum speed	6 Km/h
28	Maximum obstacle height	25cm
29	Charging time	5h
30	Loading capacity	136KG
31	Standard color	black and sliver

Details of wheelchair

Who Is RICHALL?
We are enterprise with integration of R&D , manufacturing and sales as one of the professional manufacturers.main carbon electric wheelchair ,aluminum electric wheelchair , walker, manual wheelchair Shift chair and Class I and Class II medical devices,etc.
We provide customers with a variety of high quality customized products and OEM,ODM and other projects.
We will provide customers with high quality products and the best service with professional team, advanced equipment and high effective working attitude.

微信图片_20231209151057

集装箱

Q1:Can I Take The Plane? What Documentation Is Required?

A1:Yes, our products can be allowed to be carried on the plane, different airlines will have different regulations, you can
consult the airline staff of your flight.

Q2:Is this hard to fold up?
A2: No, you just lift feet part to the top and it folds. if you are weak, you can choose our Automatic open and fold.

Q3:To Avoid Overcharging, Should I Need Protective Measures When Charging?
A3:No, the charger has a power-off protection function. When the battery is fully charged, the charging power supply will cut off by itself.

Q4:Should I Need To Assemble After Unpacking?
A4:After unpacking, only the controller joystick needs to be installed, the wheelchair lock is fixed, and the power can be used.

Q5: Must the battery be removed to fold the wheelchair?
A5: No, the wheelchair can be folded just fine when the battery is on. Its compact design hides battery when folded.

Q6:Can The Controller Lever Switch Between Left And Right?
A6: Yes, the joystick can be switched left and right.

Q7:Can Product Quality Issues Be Returned?
A7:At present, my products do not support return, but if there are quality problems, we will send spare parts for customers to replace them during the warranty period. We also have a professional after-sales team to guide the installation.

Q8: Are You Directly OEM And ODM?
A8: OEM can, we can customize your LOGO in a wheelchair. ODM is also acceptable, but the cost of opening the mold is relatively expensive, requires the customer to pay for it, and the cycle is longer. If the customer can accept it, our factory is no problem.
